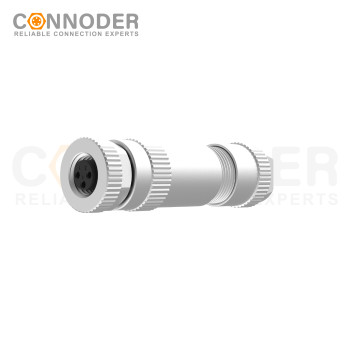

M8 Female Circular Connector-Field Wireable,Straight Metal Assembled,Screw type Connection,A code,
- group name
- M8 A Coded Connector
- Min Order
- 1 piece
- brand name
- Connoder Circular Connector Manufacturer
- model
- MC08AF-03N4LJZSS1401
- Nearest port for product export
- Shenzhen Guangdong, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 10 May 2025 05:27:19 GMT
Paramtents
Type M8 Circular Connector
Contact Connection Type Female Connector
Number OF Positions 3 Pin（3/4Pin Optional）
Coding A
Termination Screw type
Mounting Type Metal Assembled
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
-
Min Order1 piece
Briefing
The M8A coded circular connector is known for its compact design, rugged construction and reliable performance.
Detailed
M8 Female Circular Connector characteristic
Description
- Pin count configurations: The M8A coded circular connector is available in 3, 4, 6, and 8 pin configurations, ideal for signal transmission and power distribution tasks. The choice of different needle counts allows users to customize the solution according to their specific needs.
- Polarization design: To ensure proper pairing and prevent misinsertion, the A-code connector has A unique keyway design. It is essential to avoid errors in high density cabling environments, thus ensuring the safety and reliability of the connection.
- Protection level: Under normal circumstances, the M8A code connector meets the IP67 standard, can effectively prevent dust, and can resist underwater immersion for a short time.
- Material Quality: M8A coded connectors Connectors are manufactured with high-quality materials such as nickel-plated brass housings and gold-plated copper contacts. It not only enhances mechanical strength and corrosion resistance, but also improves electrical conductivity, ensuring long-term stability and reliability.
- Installation Flexibility: The M8A coded circular connector supports a variety of mounting methods, including panel mounting (front or rear locking), direct cable connection, and more. Their flexibility makes them easy to integrate into different system designs to meet a variety of application requirements.
M8 Female Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68(locked state) | |
M8 Female Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC08AF-03N4LJZSS1401 | 3 | 3A | 60V | 60V | 24 | 0.25 | |
MC08AF-04N4LJZSS1401 | 4 | 3A | 60V | 60V | 24 | 0.25 | |
M8 Female Circular Connector Coding Parameter:
| Pins | 3A | 4A | 6A |
| Male |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |
|
| Pins | 3A | 4A | 6A |
| Female |  |
 |
 |
| 8A | 5B | 4D | |
 |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M8 Female Circular Connector Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin A Core Color | Pins | 4 Pin D Core Color | |||
| 1 | BN |  |
1 | BN | |
1 | YE |  |
| 2 | - |  |
2 | WH |  |
2 | WH | |
| 3 | BU |  |
3 | BU | |
3 | OG |  |
| 4 | BK |  |
4 | BK | |
4 | BU | |
| - | ||||||||
| Pins | 5 Pin Core Color | Pins | 6 Pin Core Color | Pins | 8 Pin Core Color | |||
| 1 | BN | |
1 | BN | |
1 | WH | |
| 2 | WH | |
2 | WH | |
2 | BN | |
| 3 | BU | |
3 | BU | |
3 | GN |  |
| 4 | BK | |
4 | BK | |
4 | YE | |
| 5 | GY |  |
5 | GY | |
5 | GY | |
| 6 | PK |  |
6 | PK | |
|||
| 7 | BU | |
||||||
| 8 | RD |  |
||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M8 Female Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
