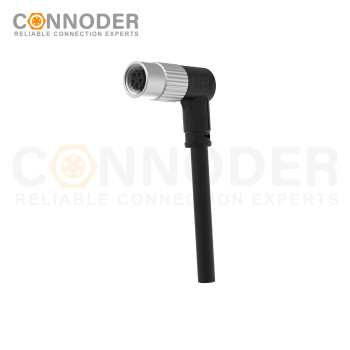

M9 Female Sensor Connecting-Right Angle Overmolded Cable,UL, PUR, black,Solder Connection
- group name
- M9 Connecting Cables
- Min Order
- 1 piece
- brand name
- Connoder Circular Connector Manufacturer
- model
- MB09NF-035LSRAXXXXX01
- Nearest port for product export
- Shenzhen Guangdong, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 10 May 2025 06:42:32 GMT
Paramtents
Type M9 Cable Connector
Contact Connection Type Female Connector
Number OF Positions 2 Pin（2/3/4/5/6/7/8Pin Optional）
Coding A
Termination Solder
Mounting Type Overmolded Type
Shielded Option Yes/No Optional
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
-
Min Order1 piece
Briefing
M9 Sensor cable is specially designed for use in the fields of industrial automation, sensor technology and instrumentation.
Detailed
M9 Sensor cable characteristic
Description
- M9 Sensor cable is specially designed for use in industrial automation, sensor technology and instrumentation.
- Pin count configuration: The M9 Sensor cable offers a variety of pin count options (such as 2 to 8 pins) to suit different electrical needs.
- Protection level: With high protection level IP67, to ensure dust and water resistance, suitable for use in harsh environments.
- Material selection: Manufactured with durable materials such as PVC or PUR sheathing, as well as metal connectors for enhanced mechanical strength and EMI shielding.
- Installation method: Straight or angled design with locking mechanism ensures stable and reliable connection.
M9 Sensor cable Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M9 Sensor cable Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MB09NF-025LSRAXXXXX01 | 2 | 4A | 125V | 125V | 24 | 0.25 | |
MB09NF-035LSRAXXXXX01 | 3 | 4A | 125V | 125V | 24 | 0.25 | |
MB09NF-045LSRAXXXXX01 | 4 | 3A | 125V | 125V | 24 | 0.25 | |
MB09NF-055LSRAXXXXX01 | 5 | 3A | 125V | 125V | 24 | 0.25 | |
MB09NF-065LSRAXXXXX01 | 6 | 1A | 125V | 125V | 26 | 0.14 | |
MB09NF-075LSRAXXXXX01 | 7 | 1A | 125V | 125V | 26 | 0.14 | |
MB09NF-085LSRAXXXXX01 | 8 | 1A | 125V | 125V | 26 | 0.14 | |
M9 Sensor cable Coding Parameter:
| Pins | 2 | 3 | 4 | 5 |
| Male |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
||
| Pins | 2 | 3 | 4 | 5 |
| Femle |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M9 Sensor cable Wire Definition:
| Pins | 2 Pin Core Color | Pins | 6 Pin Core Color | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| Pins | 3 Pin Core Color | 4 | BK |  |
|
| 1 | BN | |
5 | GY |  |
| 2 | BU | |
6 | PK |  |
| 3 | BK | |
|||
| Pins | 7 Pin Core Color | ||||
| Pins | 4 Pin Core Color | 1 | WH | |
|
| 1 | BN | |
2 | BN | |
| 2 | WH | |
3 | GN |  |
| 3 | BU | |
4 | YE |  |
| 4 | BK | |
5 | GY | |
| - | 6 | PK | |
||
| Pins | 5 Pin Core Color | 7 | BU | |
|
| 1 | BN | |
|||
| 2 | WH | |
Pins | 8 Pin Core Color | |
| 3 | BU | |
1 | WH | |
| 4 | BK | |
2 | BN | |
| 5 | GY | |
3 | GN | |
| 4 | YE | |
|||
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M9 Sensor cable Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
