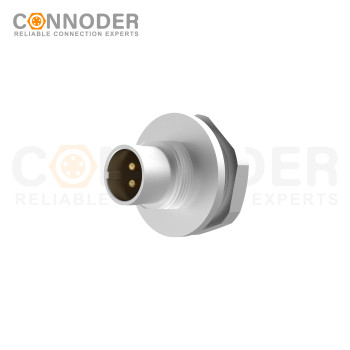

Wholesale M9 5 Pin Circular Connectors Front Mount Male Solder Connectio, Rear Fastened
- group name
- M9 Circular Connector
- Min Order
- 1 piece
- brand name
- Connoder Circular Connector Manufacturer
- model
- MC09NM-05F2LSLNS1701
- Nearest port for product export
- Shenzhen Guangdong, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 10 May 2025 06:28:18 GMT
Paramtents
Type M9 Circular Connector
Contact Connection Type Male Connector
Number OF Positions 2 Pin（2/3/4/5/6/7/8Pin Optional）
Coding A
Termination Solder type
Mounting Type Front Fastened
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC 61076-2-105
Packging & Delivery
-
Min Order1 piece
Briefing
The M95 Pin Circular Connectors is a connection solution designed for industrial applications with high reliability and stability.
Detailed
M9 5 Pin Circular Connectors characteristic
Description
- Pin count configuration: The M9 circular connector offers 2-8 pins for applications requiring multiple signal or power transmission. The distance between each pin is precisely designed to ensure good electrical performance and mechanical strength.
- Protection level: M9 Circular connector Connector with IP67 or higher protection level, can effectively prevent dust entry, and can resist underwater immersion in a short time, ideal for outdoor use or harsh environment work.
- Materials and construction: M9 8Pin connectors are manufactured with high-quality materials such as nickel-plated brass housing and gold-plated copper contacts to provide excellent corrosion resistance and electrical conductivity. The threaded locking mechanism ensures the stability and vibration resistance of the connection.
- Installation mode: Supports a variety of installation modes, including panel installation (front or rear installation), and direct cable connection, to meet different device integration requirements. Preformed cable or welded single wire options make these connectors ready for immediate use, simplifying the installation process.
- Application scenarios: M9 circular connectors are widely used in automation control systems, sensor networks, robotics, and other areas that require efficient connectivity.
M9 5 Pin Circular Connectors Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M9 5 Pin Circular Connectors Size diagram
M9 5 Pin Circular Connectors Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC09NM-02F2LSLNS1701 | 2 | 4A | 125V | 125V | 24 | 0.25 | |
MC09NM-03F2LSLNS1701 | 3 | 4A | 125V | 125V | 24 | 0.25 | |
MC09NM-04F2LSLNS1701 | 4 | 3A | 125V | 125V | 24 | 0.25 | |
MC09NM-05F2LSLNS1701 | 5 | 3A | 125V | 125V | 24 | 0.25 | |
MC09NM-06F2LSLNS1701 | 6 | 1A | 125V | 125V | 26 | 0.14 | |
MC09NM-07F2LSLNS1701 | 7 | 1A | 125V | 125V | 26 | 0.14 | |
MC09NM-08F2LSLNS1701 | 8 | 1A | 125V | 125V | 26 | 0.14 | |
M9 5 Pin Circular Connectors Coding Parameter:
| Pins | 2 | 3 | 4 | 5 |
| Male |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
||
| Pins | 2 | 3 | 4 | 5 |
| Femle |  |
 |
 |
 |
| 6 | 7 | 8 | ||
 |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M9 5in Circular Connectors Wire Definition:
| Pins | 2 Pin Core Color | Pins | 6 Pin Core Color | ||
| 1 | BN |  |
1 | BN | |
| 2 | BU |  |
2 | WH |  |
| 3 | BU | |
|||
| Pins | 3 Pin Core Color | 4 | BK |  |
|
| 1 | BN | |
5 | GY |  |
| 2 | BU | |
6 | PK |  |
| 3 | BK | |
|||
| Pins | 7 Pin Core Color | ||||
| Pins | 4 Pin Core Color | 1 | WH | |
|
| 1 | BN | |
2 | BN | |
| 2 | WH | |
3 | GN |  |
| 3 | BU | |
4 | YE |  |
| 4 | BK | |
5 | GY | |
| - | 6 | PK | |
||
| Pins | 5 Pin Core Color | 7 | BU | |
|
| 1 | BN | |
|||
| 2 | WH | |
Pins | 8 Pin Core Color | |
| 3 | BU | |
1 | WH | |
| 4 | BK | |
2 | BN | |
| 5 | GY | |
3 | GN | |
| 4 | YE | |
|||
| 5 | GY | |
|||
| 6 | PK | |
|||
| 7 | BU | |
|||
| 8 | RD |  |
|||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M9 5 Pin Circular Connectors Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
