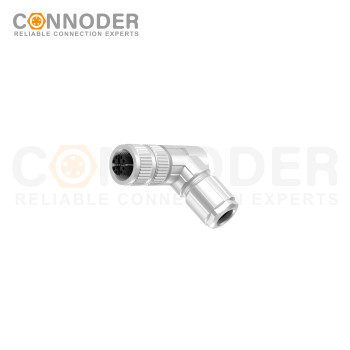

M12 X Code Female Angle Circular Connector-Metal Assembled,Field Wireable,Screw Connection,Shielded,PG7

group name: M12 X Coded Connector

Min Order: 1 piece

brand name: Connoder Circular Connector Manufacturer

model: MC12XF-08N4LSLPR601

Nearest port for product export: Shenzhen Guangdong, China

Delivery clauses under the trade mode: FOB, CIF, EXW, CIP, DDP, Express Delivery

Acceptable payment methods: T/T, L/C

update time: Sat, 10 May 2025 07:30:34 GMT

contact supplier

Paramtents

Type M12 Circular Connector
Contact Connection Type Female Connector
Number OF Positions 8 Pin
Coding X
Termination Screw
Mounting Type Right Angle Plastic Assembled
Shielded Option Shielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111

Packging & Delivery

Min Order1 piece

Briefing

M12 Field Wireable Connector is a flexible and highly customizable connector suitable for a variety of industrial applications.

Detailed

M12 X Code Circular Connector characteristic

Description

The M12 X Code Circular Connector family is designed to meet the demands of high-speed data transmission in today's industrial environments. Our X-coded connectors not only support data transfer rates up to 10 Gbps, but are also equipped with advanced shielding technology to ensure stable, interference-free data communication in any environment.
Ultra-high-speed transmission: The Cat6A standard supports a transmission rate of up to 10 Gbps, which is suitable for application scenarios requiring high bandwidth.
Excellent EMI/RFI protection: Built-in alloy shielding effectively protects against electromagnetic interference and RF interference, ensuring data integrity.
Rugged design: IP67 protection for optimal performance even under harsh operating conditions.

Difference between PG7 and PG9

PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.

M12 X Code Circular Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M12 X Code Circular Connector Size diagram

M12 X Code Circular Connector Electrical parameter:

Product model	Pins	Rated current	Rated voltage		Wire Gauge/Size
			A/C	D/C	AWG	mm²
MC12XF-08N4LSLPR601	8	0.5A	50V	60V	26-24	0.14-0.25

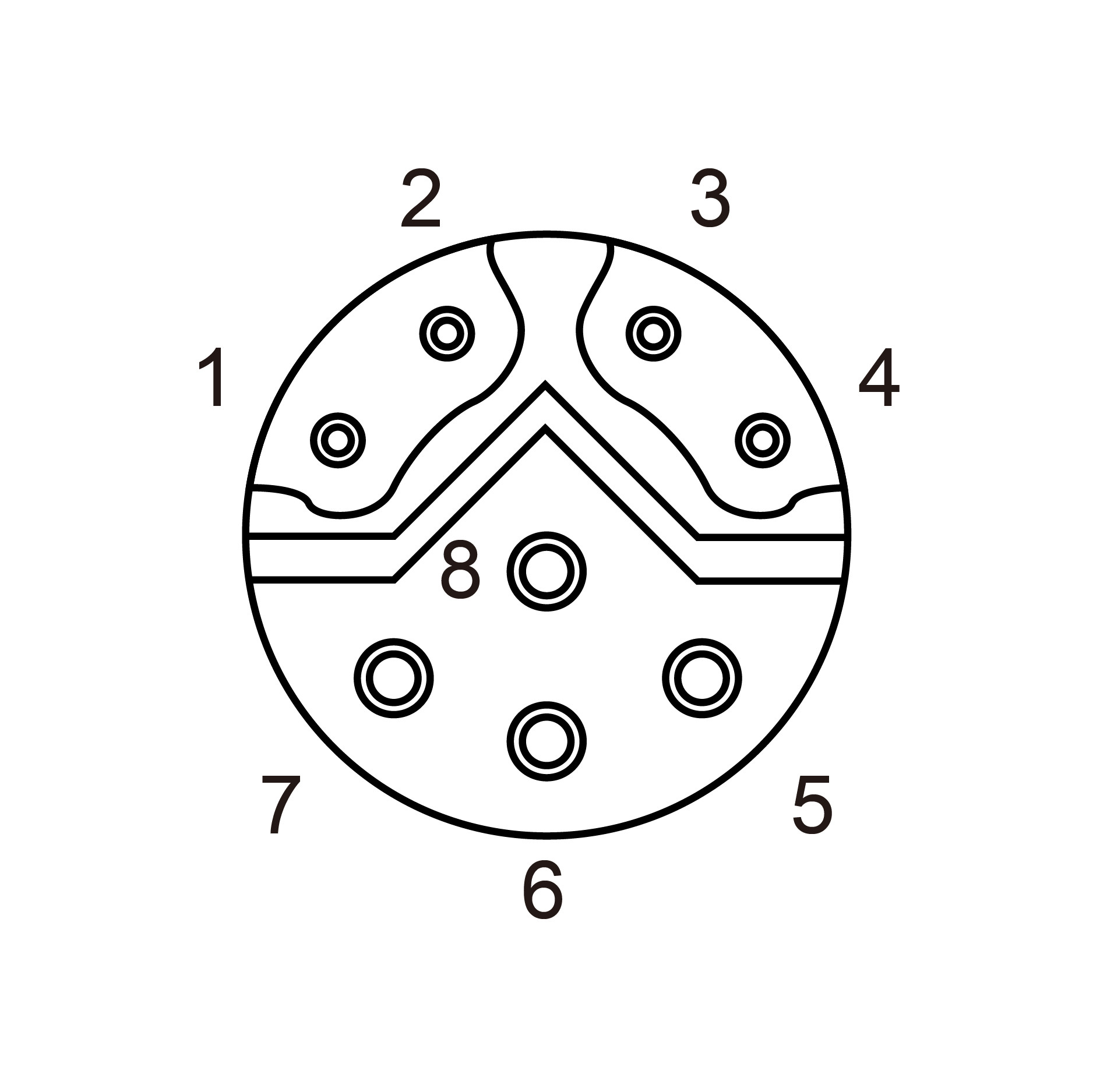

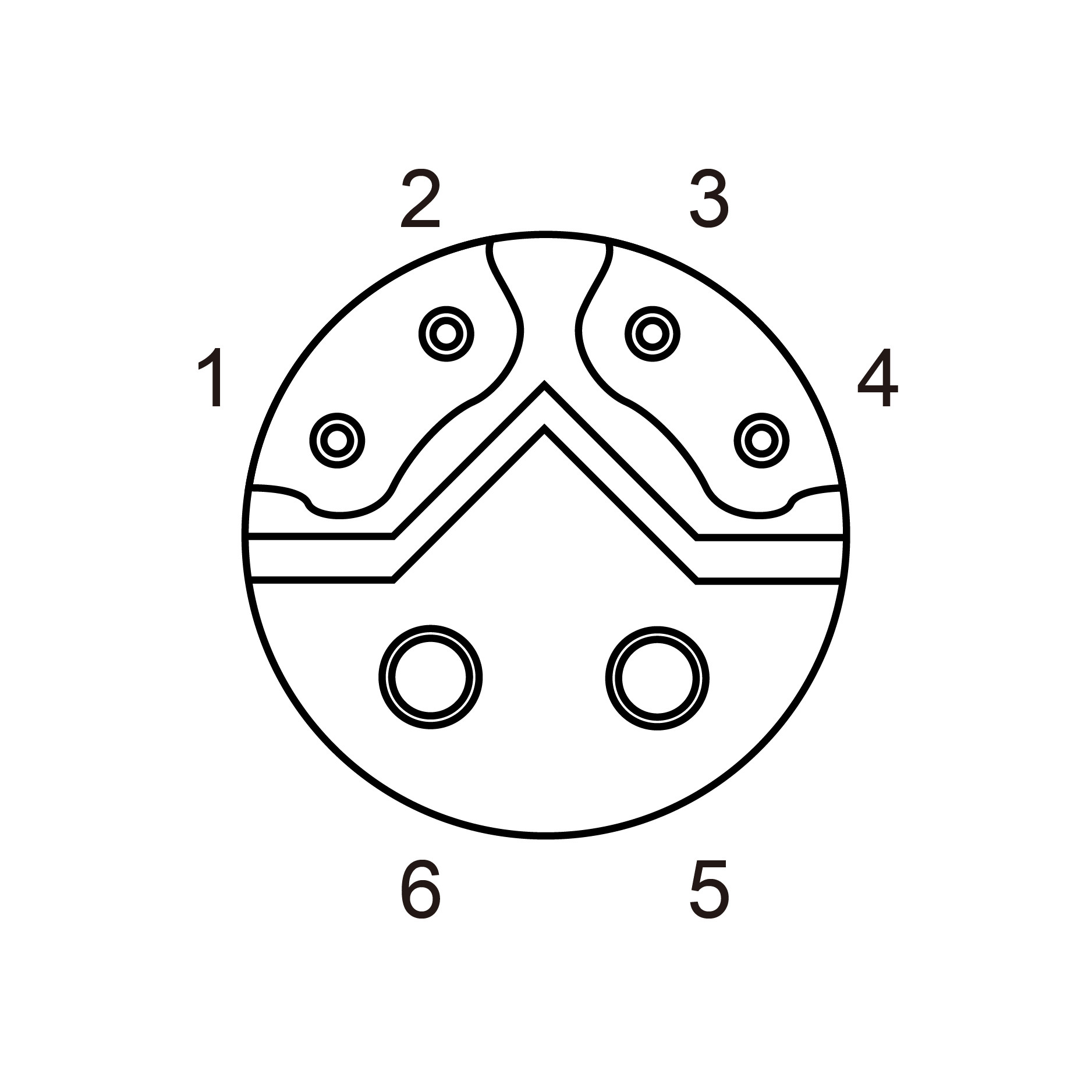

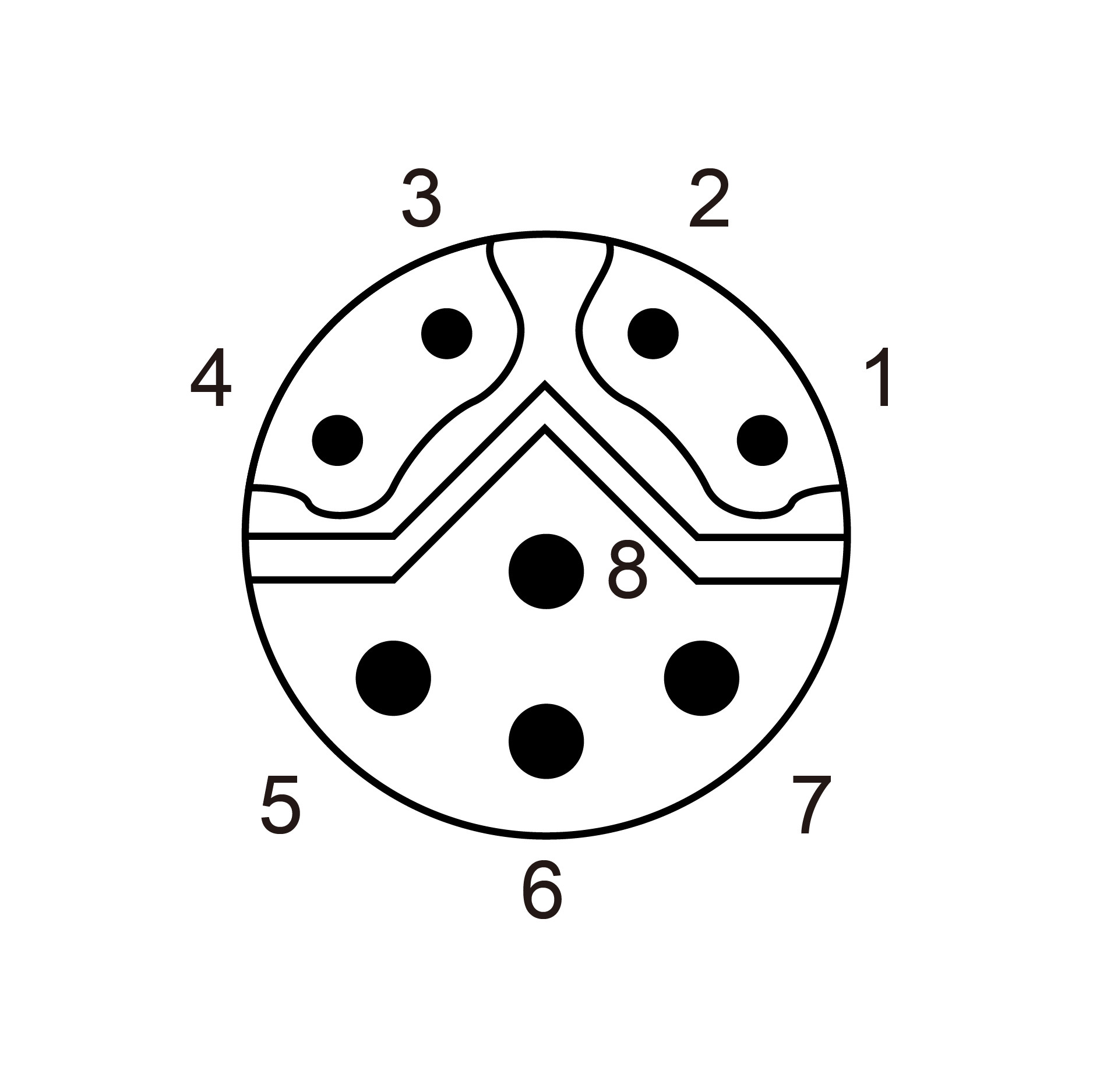

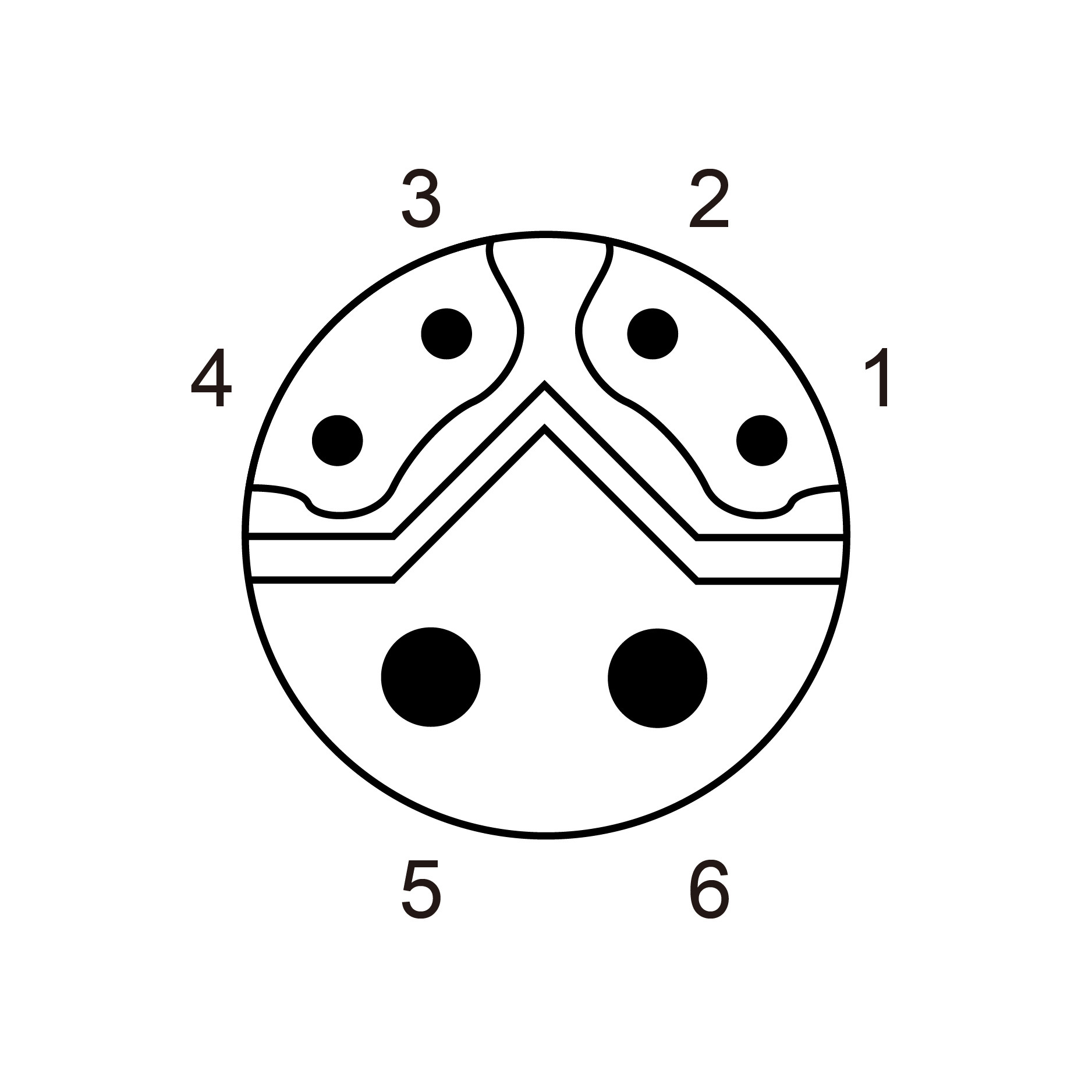

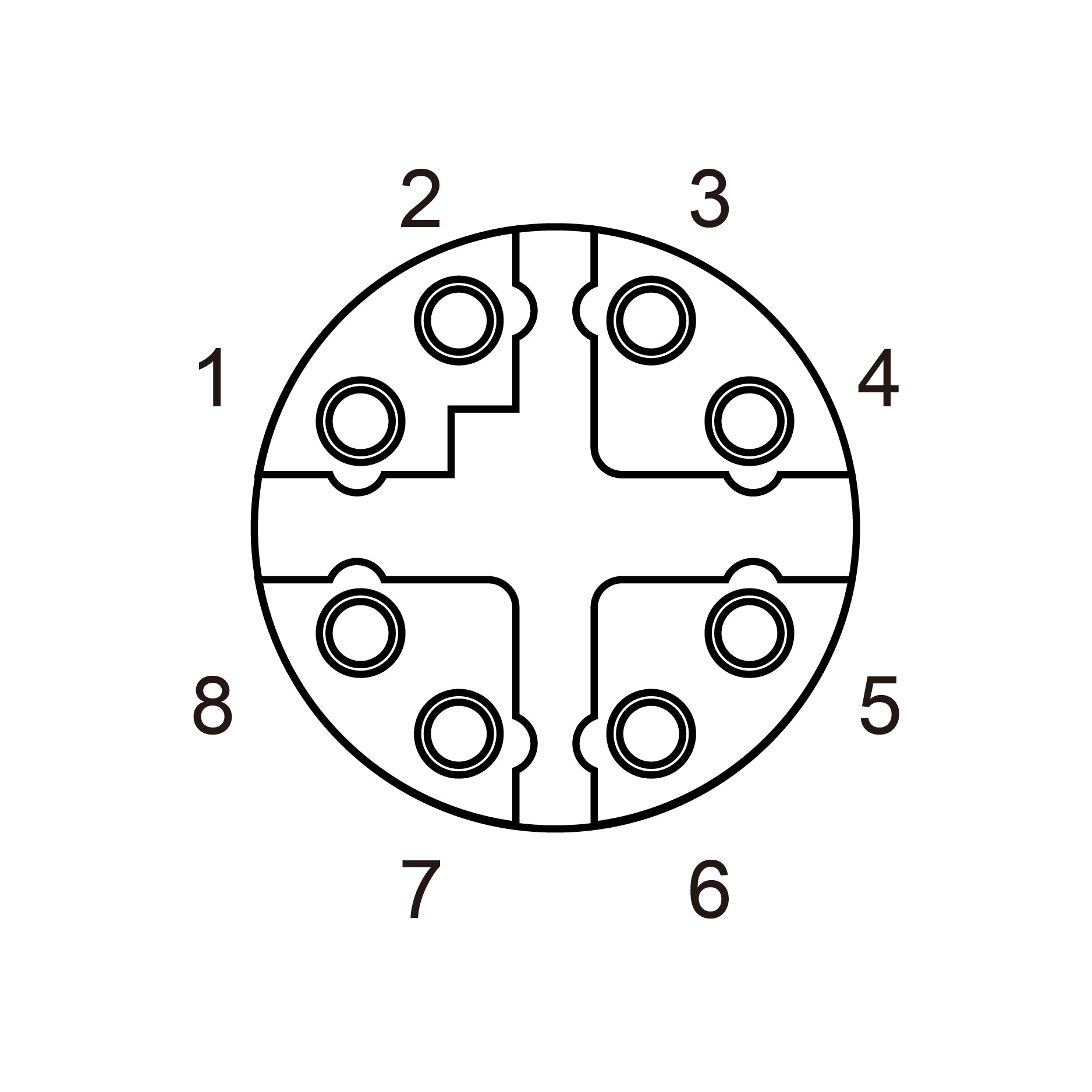

M12 X Code Circular Connector Coding Parameter:

Pins	8X	6Y	8Y
Male
Pins	8X	6Y	8Y
Female

Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff

M12 X Code Circular Connector Wire Definition:

Pins	8 Pin X Core Color		Pins	6 Pin Y Core Color		Pins	8 Pin Y Core Color
1	WHOG	D1+	1	WHOG	D1+	1	WHOG	D1+
2	OG	D1-	2	OG	D1-	2	OG	D1-
3	WHGN	D2+	3	WHGN	D2+	3	WHGN	D2+
4	GN	D2-	4	GN	D2-	4	GN	D2-
5	WHBN	D4+	5	BU	D4+	5	BU	D4+
6	BN	D4-	6	WH	D4-	6	WH	D4-
7	WHBU	D3-				7	BN	D3-
8	BU	D3+				8	BK	D3+

Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.

M12 X Code Circular Connector Application:

Industrial Automation

Food Packaging

Warehousing Logistics

Automated Production

M12 Circular Connector Mating connectors:
