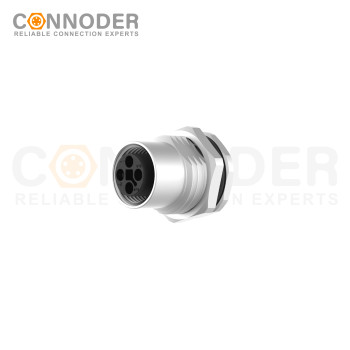

M12 T Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,Factory

M12 T Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,Factory
M12 T Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 T Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 T Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 T Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 T Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,Factory
group name
M12 T Coded Connector
Min Order
1 piece
brand name
Connoder Circular Connector Manufacturer
model
MC12TF-04R2LDLNS301
Nearest port for product export
Shenzhen Guangdong, China
Delivery clauses under the trade mode
FOB, CIF, EXW, CIP, DDP, Express Delivery
Acceptable payment methods
T/T, L/C
update time
Sat, 10 May 2025 05:31:50 GMT
contact supplier

Paramtents

  • Type M12 Circular Connector

  • Contact Connection Type Female Connector

  • Number OF Positions 2 Pin/2 Pin+PE/3 Pin+PE

  • Coding T

  • Termination Solder

  • Mounting Type Front Fastened

  • Shielded Option Unshielded

  • Approval UL

  • Pollution III

  • Flame Retardant IEC61076-2-111

Packging & Delivery

  • Min Order1 piece

Briefing

M12 T coded circular connector is designed for AC power connections and has good shielding performance and protection level to meet the high requirements of power connectors in the field of industrial automation.

Detailed

 M12 T coded circular connector characteristic
M12 Sensor connector
Description
  • The M12 T code Circular Connector from Connoder is the ideal solution specifically designed for industrial power transmission. T-coded connectors, with their unique design and superior performance, offer unmatched reliability in a wide range of industrial applications.
  • Efficient power transmission: The M12T coded connector supports a voltage class of 60V.
  • High standard of protection: IP67 or higher protection to ensure stable operation in wet or dusty environments.
  • Anti-misinsertion design: The unique key design of the T-code effectively prevents the wrong connection with other types of connectors and ensures the safe operation of the equipment.
  • Durable: Made of high-quality materials, with good impact resistance and corrosion resistance, adapt to a variety of harsh environments.
 M12 T coded circular connector Specification
Shell Material
Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material
Epoxy Resin/Rubber
Contact Material
Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material
PA+PA+GF/TPU
Molding Material
TPU/PVC
Contact Resistance
≤5mΩ
Durability
≥ 500 Cycles
Insulation Resistance
100 MΩ
Applicable Temperature
-40℃ Tо +80℃
Waterproof Grade
IP67/IP68
 M12 T coded circular connector Size diagram
M12 Circular Connector Size diagram
‌ M12 T coded circular connector Electrical parameter:
Product model
Pins
Rated current
Rated voltage
Wire Gauge/Size
A/C
D/C
AWG
mm²
MC12TF-02R2LDLNS301
2
12A
60V
60V
16
1.5
MC12TF-03R2LDLNS301
2+PE
12A
60V
60V
16
1.5
MC12TF-04R2LDLNS301
3+PE
12A
60V
60V
16
1.5
 M12 T coded circular connector Coding Parameter:
Code Type Pins Male Female
S Code 2 M12 S Male 2Pin M12 S Female 2Pin
2+PE M12 S Male 2+PE M12 S Female 2+PE
3+PE M12 S Male 3+PE M12 S Female 3+PE
T Code 2 M12 T Male 2Pin M12 T Female 2Pin
2+PE M12 T Male 2+PE M12 T Female 2+PE
3+PE M12 T Female 3+PE
K Code 2 M12 K Male 2Pin M12 K Female 2Pin
2+PE M12 K Male 2+PE M12 K Female 2+PE
3+PE M12 K Male 3+PE M12 K Female 3+PE
4+PE M12 K Male 4+PE M12 K Female 4+PE
L Code 2 M12 L Male 2Pin M12 L Female 2
2+FE M12 L Male 2+PE M12 L Female 2+PE
3 M12 L Male 3Pin M12 L Female 3Pin
3+FE M12 L Male 3+PE M12 L Female 3+PE
4 M12 L Male 4Pin M12 L Female 4Pin
4+FE M12 L Male 4+PE M12 L Female 4+PE
M Code 2 M12 M Male 2Pin M12 M Female 2Pin
2+PE M12 M Male 2+PE M12 M Female 2+PE
3+PE M12 M Male 3+PE M12 M Female 3+PE
4+PE M12 M Male 4+PE M12 M Female 4+PE
5+PE M12 M Male 5+PE M12 M Female 5+PE
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
 M12 T coded circular connector Wire Definition:
Pins 2+PE S Core Color Pins 4+PE S Core Color Pins 4Pin T Core Color
1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BN 4 Pin Core Color
2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color 2 WH 6 Pin Core Color
PE GNYE Image 3 BK3 4 Pin Core Color 3 BU 4 Pin Core Color
PE GNYE Image 4 BK 4 Pin Core Color
-
Pins 4/4+PE L Core Color Pins 4+PE K Core Color Pins 5+PE M Core Color
1 BN 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color
2 WH 6 Pin Core Color 2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color
3 BU 4 Pin Core Color 3 BK3 4 Pin Core Color 3 BK3 4 Pin Core Color
4 BK 4 Pin Core Color 4 BK4 4 Pin Core Color 4 BK4 4 Pin Core Color
PE GY 6 Pin Core Color PE GNYE Image 5 BK5 4 Pin Core Color
PE GNYE Image
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
 M12 T coded circular connector PCB Pins Arrangement:
Pins 2T 3S 3T 4S
Male M12 Mael Connector 2Pin T Coed PCB Pins Arrangement M12 Femael Connector 2+PE S Coed PCB Pins Arrangement M12 Mael Connector 2+PE T Coed PCB Pins Arrangement M12 Mael Connector 3+PE S Coed PCB Pins Arrangement
4T 3K/3L 4K/4L 5K/5L
M12 Mael Connector 3+PE T Coed PCB Pins Arrangement M12 Mael Connector 2+PE K L Coed PCB Pins Arrangement M12 Mael Connector 3+PE K L Coed PCB Pins Arrangement M12 Mael Connector 4+PE K L Coed PCB Pins Arrangement
Pins 2T 3S 3T 4S
Female M12 Femael Connector 2Pin T Coed PCB Pins Arrangement M12 Femael Connector 2+PE S Coed PCB Pins Arrangement M12 Femael Connector 2+PE T Coed PCB Pins Arrangement M12 Femael Connector 3+PE S Coed PCB Pins Arrangement
4T 3K/3L 4K/4L 5K/5L
M12 Femael Connector 3+PE T Coed PCB Pins Arrangement M12 Femael Connector 2+PE K L Coed PCB Pins Arrangement M12 Femael Connector 3+PE K L Coed PCB Pins Arrangement M12 Femael Connector 4+PE K L Coed PCB Pins Arrangement
 M12 T coded circular connector Application:
Industrial Automation
Industrial Automation

Food Packaging
Food Packaging

Warehousing Logistics
Warehousing Logistics

Automated Production
Automated Production
