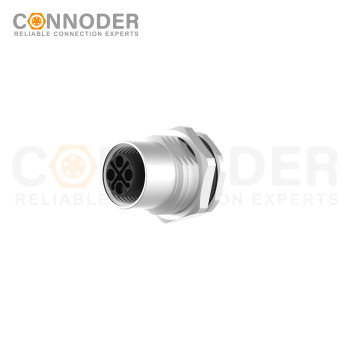

M12 S Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,Factory

M12 S Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,Factory
M12 S Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 S Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 S Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 S Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,FactoryM12 S Coded Sensor connector Circular Connector-Panel Mount,Solder Connection,Female,M16x1.5, Front Fastened,Factory
group name
M12 S Coded Connector
Min Order
1 piece
brand name
Connoder Circular Connector Manufacturer
model
MC12SF-04R2LSLNS301
Nearest port for product export
Shenzhen Guangdong, China
Delivery clauses under the trade mode
FOB, CIF, EXW, CIP, DDP, Express Delivery
Acceptable payment methods
T/T, L/C
update time
Sat, 10 May 2025 05:39:07 GMT
contact supplier

Paramtents

  • Type M12 Circular Connector

  • Contact Connection Type Female Connector

  • Number OF Positions 2 Pin/2 Pin+PE/3 Pin+PE

  • Coding S

  • Termination Solder

  • Mounting Type Front Fastened

  • Shielded Option Unshielded

  • Approval UL

  • Pollution III

  • Flame Retardant IEC61076-2-111

Packging & Delivery

  • Min Order1 piece

Briefing

M12 S coded circular connector is designed for AC power connections and has good shielding performance and protection level to meet the high requirements of power connectors in the field of industrial automation.

Detailed

 M12 S coded circular connector characteristic
M12 Sensor connector
Description
  • Shielding performance ‌ :  M12 S coded circular connector has good shielding performance, which can effectively reduce electromagnetic interference and ensure the stable transmission of signals.
  • ‌ Protection rating ‌ : Typically IP67 or higher to provide a reliable electrical connection in harsh environments.
  • ‌ Current and voltage ‌ : Supports higher current 12A and voltage 630V.
  • Installation method: straight insert, Angle insert and panel type, convenient installation and wiring of different equipment ‌,  M12 S coded circular connector adopts screw lock design, compact structure, with anti-vibration, anti-impact, anti-interference characteristics.
  • The  M12 S coded circular connector is suitable for a variety of industrial automation environments, especially in harsh conditions such as high temperature, high humidity, strong vibration, and can provide a stable and reliable power connection. Its high protection level ensures long-term stable operation in harsh environments ‌.
 M12 S coded circular connector Specification
Shell Material
Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material
Epoxy Resin/Rubber
Contact Material
Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material
PA+PA+GF/TPU
Molding Material
TPU/PVC
Contact Resistance
≤5mΩ
Durability
≥ 500 Cycles
Insulation Resistance
100 MΩ
Applicable Temperature
-40℃ Tо +80℃
Waterproof Grade
IP67/IP68
 M12 S coded circular connector Size diagram
M12 Circular Connector Size diagram
‌ M12 S coded circular connector Electrical parameter:
Product model
Pins
Rated current
Rated voltage
Wire Gauge/Size
A/C
D/C
AWG
mm²
MC12SF-02R2LSLNS301
2
12A
630V
630V
16
1.5
MC12SF-03R2LSLNS301
2+PE
12A
630V
630V
16
1.5
MC12SF-04R2LSLNS301
3+PE
12A
630V
630V
16
1.5
 M12 S coded circular connector Coding Parameter:
Code Type Pins Male Female
S Code 2 M12 S Male 2Pin M12 S Female 2Pin
2+PE M12 S Male 2+PE M12 S Female 2+PE
3+PE M12 S Male 3+PE M12 S Female 3+PE
T Code 2 M12 T Male 2Pin M12 T Female 2Pin
2+PE M12 T Male 2+PE M12 T Female 2+PE
3+PE M12 T Female 3+PE
K Code 2 M12 K Male 2Pin M12 K Female 2Pin
2+PE M12 K Male 2+PE M12 K Female 2+PE
3+PE M12 K Male 3+PE M12 K Female 3+PE
4+PE M12 K Male 4+PE M12 K Female 4+PE
L Code 2 M12 L Male 2Pin M12 L Female 2
2+FE M12 L Male 2+PE M12 L Female 2+PE
3 M12 L Male 3Pin M12 L Female 3Pin
3+FE M12 L Male 3+PE M12 L Female 3+PE
4 M12 L Male 4Pin M12 L Female 4Pin
4+FE M12 L Male 4+PE M12 L Female 4+PE
M Code 2 M12 M Male 2Pin M12 M Female 2Pin
2+PE M12 M Male 2+PE M12 M Female 2+PE
3+PE M12 M Male 3+PE M12 M Female 3+PE
4+PE M12 M Male 4+PE M12 M Female 4+PE
5+PE M12 M Male 5+PE M12 M Female 5+PE
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
 M12 S coded circular connector Wire Definition:
Pins 2+PE S Core Color Pins 4+PE S Core Color Pins 4Pin T Core Color
1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BN 4 Pin Core Color
2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color 2 WH 6 Pin Core Color
PE GNYE Image 3 BK3 4 Pin Core Color 3 BU 4 Pin Core Color
PE GNYE Image 4 BK 4 Pin Core Color
-
Pins 4/4+PE L Core Color Pins 4+PE K Core Color Pins 5+PE M Core Color
1 BN 4 Pin Core Color 1 BK1 4 Pin Core Color 1 BK1 4 Pin Core Color
2 WH 6 Pin Core Color 2 BK2 4 Pin Core Color 2 BK2 4 Pin Core Color
3 BU 4 Pin Core Color 3 BK3 4 Pin Core Color 3 BK3 4 Pin Core Color
4 BK 4 Pin Core Color 4 BK4 4 Pin Core Color 4 BK4 4 Pin Core Color
PE GY 6 Pin Core Color PE GNYE Image 5 BK5 4 Pin Core Color
PE GNYE Image
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
 M12 S coded circular connector PCB Pins Arrangement:
Pins 2T 3S 3T 4S
Male M12 Mael Connector 2Pin T Coed PCB Pins Arrangement M12 Femael Connector 2+PE S Coed PCB Pins Arrangement M12 Mael Connector 2+PE T Coed PCB Pins Arrangement M12 Mael Connector 3+PE S Coed PCB Pins Arrangement
4T 3K/3L 4K/4L 5K/5L
M12 Mael Connector 3+PE T Coed PCB Pins Arrangement M12 Mael Connector 2+PE K L Coed PCB Pins Arrangement M12 Mael Connector 3+PE K L Coed PCB Pins Arrangement M12 Mael Connector 4+PE K L Coed PCB Pins Arrangement
Pins 2T 3S 3T 4S
Female M12 Femael Connector 2Pin T Coed PCB Pins Arrangement M12 Femael Connector 2+PE S Coed PCB Pins Arrangement M12 Femael Connector 2+PE T Coed PCB Pins Arrangement M12 Femael Connector 3+PE S Coed PCB Pins Arrangement
4T 3K/3L 4K/4L 5K/5L
M12 Femael Connector 3+PE T Coed PCB Pins Arrangement M12 Femael Connector 2+PE K L Coed PCB Pins Arrangement M12 Femael Connector 3+PE K L Coed PCB Pins Arrangement M12 Femael Connector 4+PE K L Coed PCB Pins Arrangement
 M12 S coded circular connector Application:
Industrial Automation
