Signal Cables, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, PVC black

group name: Signal Cables

Min Order: 1 piece

brand name: Connoder Circular Connector Manufacturer

Nearest port for product export: Shenzhen Guangdong, China

Delivery clauses under the trade mode: FOB, CIF, EXW, CIP, DDP, Express Delivery

Acceptable payment methods: T/T, L/C

update time: Sat, 06 Dec 2025 02:00:35 GMT

contact supplier

Paramtents

Product type Signal Cables
Application Signal
Number of positions 12
Shielded no

Packging & Delivery

Min Order1 piece

Briefing

Signal cable A cable specifically designed to transmit low-level electrical signals, including analog, digital, audio, video, or data communication signals.

Detailed

Product properties

Electrical properties

Cable/line

Product type	Signal Cables
Application	Signal
Number of positions	12
Shielded	yes

Rated surge voltage	0.8 kV
Contact resistance	≤ 3 mΩ
Insulation resistance	≥ 100 MΩ
Nominal voltage UN	30 V
Nominal current IN	1.5 A
Max. conductor resistance	142 Ω/km

Cable type	PVC black
Short symbol	PVC
Signal type/category	Universal
External cable diameter	7.00 mm ±0.03 mm
Outer sheath, material	PVC
External sheath, color	black RAL 9005
Wire diameter incl. insulation	1 mm ±0.05 mm
Single wire, color	white-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue
Cable cross section	6x 2x 0.14 mm²
Material, inner sheath	PVC
Conductor material	Tin-plated Cu litz wires
Conductor structure signal line	18x 0.10 mm
AWG signal line	26
Material wire insulation	PVC
Thickness, insulation	0.21 mm

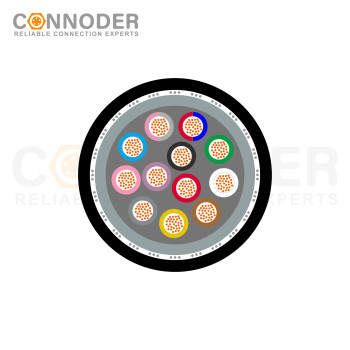

Overall twist	Six pairs around the filler to the core
Shielding	Tinned copper braided shield
Optical shield covering	85 %
Nominal voltage, cable	300 V
Test voltage, cable	1500 V AC
Cable resistance	142 Ω/km (at 20 °C)
Smallest bending radius, fixed installation	42 mm
Smallest bending radius, movable installation	105 mm
Resistance to oil	in accordance with DIN EN 60811-404
Flame resistance	IEC 60332-1-2, IEC 60332-1, FT1, VW-1
Other resistance	Hydrolysis and microbe resistant as per VDE 0282 section 10
Ambient temperature (operation)	-40 °C ... 85 °C (cable, fixed installation)
Ambient temperature (operation)	-25 °C ... 85 °C (Cable, flexible installation)
