Hybrid Cable, Ethernet Hybrid CAT5 (100 Mbps), 8-position, PUR Halogen-free,Advanced Shielding Technology, Power with Ethernet (PWE)

group name: Hybrid Cables

Min Order: 1 piece

brand name: Connoder Circular Connector Manufacturer

Nearest port for product export: Shenzhen Guangdong, China

Delivery clauses under the trade mode: FOB, CIF, EXW, CIP, DDP, Express Delivery

Acceptable payment methods: T/T, L/C

update time: Fri, 09 May 2025 23:08:46 GMT

contact supplier

Paramtents

Number of positions 8
Shielded yes
Bus system Ethernet
Signal type/category Ethernet hybrid CAT5 (IEC 118
Nominal voltage UN 48V AC/ 50V DC
Nominal current IN 6A (Power)/0.5A (Data)
Transmission medium Copper

Packging & Delivery

Min Order1 piece

Briefing

Highly flexible motor cables for communication interfaces and motor connections

Detailed

Product properties

Electrical properties

Cable/line

Product type	Data cable preassembled
Application	Standard
Sensor type	Ethernet hybrid
Number of positions	8
No. of cable outlets	1
Shielded	yes
Coding	Y

UL AWM Style	20233 (80°C/300 V)
Number of positions	8
Shielded	yes
Cable type	Ethernet hybrid [94H]
Conductor structure	1x4x AWG 26+1x4x AWG 18
AWG signal line	26
AWG power supply	18
Conductor cross section	4x 0.15 mm² (Data)
Conductor cross section	4x 0.85 mm² (Power)
Wire diameter incl. insulation	1.03 mm ±0.02 mm (Data)
Wire diameter incl. insulation	1.6 mm ±0.1 mm (Power)
External cable diameter	8.80 mm ±0.2 mm
Outer sheath, material	PUR
External sheath, color	black RAL 9005
Conductor material	Bare Cu litz wires
Material wire insulation	PP (Data)
Material wire insulation	PP (Power)
Single wire, color	white/orange, orange, white/green, green, white, blue, brown, black

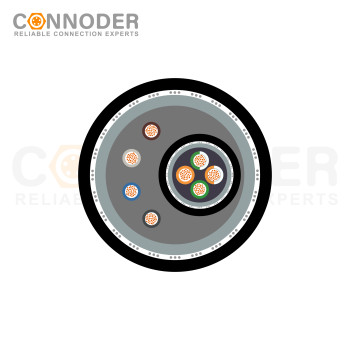

Overall twist	1 star quad and 4 wires with 2 fillers
Optical shield covering	85 %
Insulation resistance	≥ 5 GΩ*km
Loop resistance	≤ 280.00 Ω/km (Data)
Loop resistance	≤ 45.00 Ω/km (Power)
Wave impedance	100 Ω ±5 Ω (at 100 MHz)
Differential impedance	100 Ω ±5 % (at 100 MHz)
Nominal voltage, cable	≤ 125 V (Peak value, not for high-power applications)
Test voltage Core/Core	2000 V (50 Hz, 1 min.)
Test voltage Core/Shield	2000.00 V (50 Hz, 1 min.)
Minimum bending radius, fixed installation	4 x D
Minimum bending radius, flexible installation	8 x D
Dynamic load capacity (bending)	Max. bending cycles: 2000000, Bending radius: 15 x D, Traversing path: 4.5 m, Traversing rate: 3 m/s, Acceleration: 3 m/s², Ambient temperature: -20 °C ... 60 °C
Shield attenuation	≥ 80.00 dB (30 MHz ... 100 MHz)
Halogen-free	according to IEC 60754-1
Flame resistance	UL 1581, Section 1060 and UL 2556, Section 9.3 (FT1)
Flame resistance	IEC 60332-1-2
Resistance to oil	in accordance with IEC 60811-404
Resistance to oil	According to DIN EN 50363-10-2
Ambient temperature (operation)	-40 °C ... 80 °C (cable, fixed installation)
	-30 °C ... 70 °C (Cable, flexible installation)
	-20 °C ... 60 °C (for installation)
	-20 °C ... 60 °C (cable, drag chain applications)

Nominal voltage UN	48 V AC (Power and data)
Nominal voltage UN	50 V DC (Power and data)
Nominal current IN	6 A (Power)
Nominal current IN	0.5 A (Data)
Transmission medium	Copper
