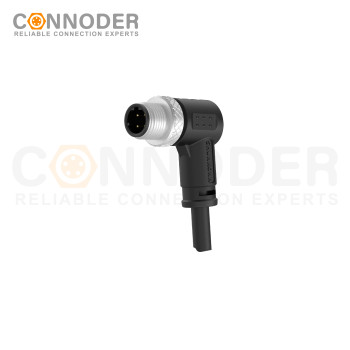

M12 D Coded Male Cable Connector-Right Angle Overmolded Cable,UL, PUR, black,Solder Connection
- group name
- M12 Connecting Cables
- Min Order
- 1 piece
- brand name
- Connoder Circular Connector Manufacturer
- model
- MB12DM-045LSRAXXXXX01
- Nearest port for product export
- Shenzhen Guangdong, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 10 May 2025 07:11:38 GMT
Paramtents
Type M12 Cable Connector
Contact Connection Type Male Connector
Number OF Positions 4 Pin
Coding D
Termination Solder
Mounting Type Overmolded Type
Shielded Option Yes/No Optional
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
-
Min Order1 piece
Briefing
M12 Overmolded Cable provide safe and reliable communication between devices and across networks within an industrial environment.
Detailed
M12 Circular Connector characteristic
Description
- M12 Overmolded Cable provide safe and reliable communication between devices and across networks within an industrial environment.
- Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.
- Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.
- M12 Overmolded Cable is available in two straight and right-angle versions.
M12 Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MB12DM-045LSRAXXXXX01 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
M12 Circular Connector Coding Parameter:
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 Circular Connector Wire Definition:
| Pins | 4 Pin Core Color | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
