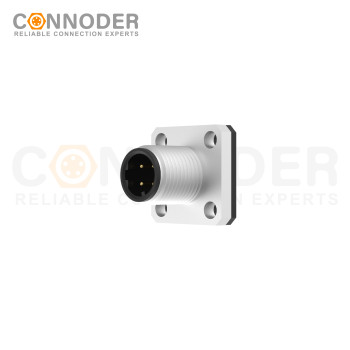

M12 D Coded Male Circular Connector-Panel Mount,Solder Square Flange,14x14
- group name
- M12 D Coded Connector
- Min Order
- 1 piece
- brand name
- Connoder Circular Connector Manufacturer
- model
- MC12DM-04F7LSLNS101
- Nearest port for product export
- Shenzhen Guangdong, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 10 May 2025 09:13:27 GMT
Paramtents
Type M12 Circular Connector
Contact Connection Type Male Connector
Number OF Positions 4 Pin
Coding D
Termination Solder
Mounting Type Square Flange
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
-
Min Order1 piece
Briefing
M12 Circular Connector are a fundamental part of automation technology and are the industry standard for sensors and actuators.
Detailed
M12 D Coded Circular Connector characteristic
Description
- Pin count configuration: M12 D coded connectors are typically available in a 4-pin configuration, making them ideal for Ethernet and other high-speed data transfer protocol applications such as ProfiNet and EtherCAT. This configuration meets the needs of most industrial networks, ensuring fast and stable data exchange.
- High-performance materials: The M12 D coded connectors feature gold-plated contacts and corrosion-resistant housing materials. The high-quality material not only improves the electrical conductivity, enhances the durability of the connector, and can maintain stable operation under harsh working conditions.
- Protection level: up to IP67 or higher protection level, effectively prevent dust from entering, and can resist underwater immersion in a short time. The M12D code connector also performs well outdoors or in wet, dusty environments.
- Application scenario: M12 D coded circular connectors are widely used in industrial Ethernet, Internet of Things (IoT), factory automation, sensor networks and other fields. Whether used to connect field devices or to build complex network architectures, M12D coded connectors provide the ideal solution.
M12 D Coded Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 D Coded Circular Connector Size diagram
M12 D Coded Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12DM-04R2LDLNS101 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
M12 D Coded Straight Male Connector Coding Parameter:
| Pins | 4D | Pins | 4D |
| Male |  |
Female |  |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 D Coded Straight Male Connector Wire Definition:
| Pins | 4 Pin Core Color | |
| 1 | YE |  |
| 2 | WH |  |
| 3 | OG |  |
| 4 | BU |  |
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 D Coded Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
