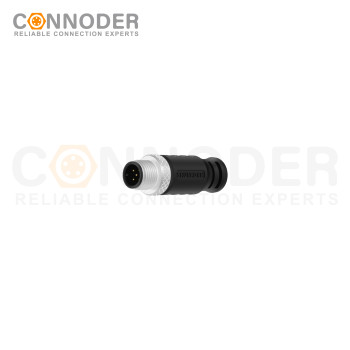

M12 Terminal resistance male 120Ω

group name: Termination Resistors

Min Order: 1 piece

brand name: Connoder Circular Connector Manufacturer

Nearest port for product export: Shenzhen Guangdong, China

Delivery clauses under the trade mode: FOB, CIF, EXW, CIP, DDP, Express Delivery

Acceptable payment methods: T/T, L/C

update time: Fri, 09 May 2025 22:20:30 GMT

contact supplier

Paramtents

Type M12 Terminal resistance
Contact Connection Type Male
Number OF Positions 2 Pin（2/3/4/5/6/8/12/17Pin Optional）
Coding A
Approval UL
Pollution III
Flame Retardant IEC61076-2-111

Packging & Delivery

Min Order1 piece

Briefing

main function of the M12 terminal resistor plug is to act as an impedance matching element at the end of the network, which is used to absorb signal reflections and thus ensure the quality of data transmission.

Detailed

M12 Terminal Resistor characteristic

Description

The M12 Terminal Resistor plug is a terminal device specifically designed for use in industrial communication networks, which integrates a 120 ohm resistor inside the M12 connector. This plug is mainly used in open fieldbus networks such as NMEA 2000, CANopen, DeviceNet and Profibus DP protocols.
High protection level: With IP67 or higher protection level, it can adapt to harsh industrial environments and prevent dust and moisture from entering and affecting electrical performance.
Compatible with multiple pin configurations: The M12 terminal resistance plug can be adapted to connectors with different pin counts to meet different application requirements.

M12 Terminal Resistor Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M12 Terminal Resistor Electrical parameter:

Pins	Rated current	Rated voltage		Wire Gauge/Size
Pins	Rated current	A/C	D/C	AWG	mm²
2	4A	250V	250V	22	0.34
3	4A	250V	250V	22	0.34
4	4A	250V	250V	22	0.34
5	4A	60V	60V	22	0.34
6	2A	30V	30V	24	0.25
8	2A	30V	30V	24	0.25
12	1.5A	30V	30V	26	0.14
17	1.5A	30V	30V	26	0.14

M12 Terminal Resistor Coding Parameter:

Pins	2A	3A	4A	5A
Male
	6A	8A	12A	17A

	4B	5B	3C	4C

	5C	6C	4D

Pins	2A	3A	4A	5A
Female
	6A	8A	12A	17A

	4B	5B	3C	4C

	5C	6C	4D

Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff

M12 Terminal Resistor Wire Definition:

Pins	2 Pin Core Color	Pins	3 Pin Core Color	Pins	4 Pin Core Color A B Code
1	BN	1	BN	1	BN
2	-	2	-	2	WH
3	BU	3	BU	3	BU
		4	BK	4	BK
-
Pins	4 Pin Core Color D Code	Pins	5 Pin Core Color	Pins	6 Pin Core Color
1	YE	1	BN	1	BN
2	WH	2	WH	2	WH
3	OG	3	BU	3	BU
4	BU	4	BK	4	BK
		5	GY	5	-
				6	GY
				7	RD
-
Pins	8 Pin Core Color	Pins	12 Pin Core Color	Pins	17 Pin Core Color
1	WH	1	BN	1	BN
2	BN	2	BU	2	BU
3	GN	3	WH	3	WH
4	YE	4	GN	4	GN
5	GY	5	PK	5	PK
6	PK	6	YE	6	YE
7	BU	7	BK	7	BK
8	RD	8	GY	8	GY
		9	RD	9	RD
		10	VT	10	VT
		11	OG	11	OG
		12	LTGN	12	LTGN
				13	LTBU
				14	BKWH
				15	BNWH
				16	RDWH
				17	BUWH
