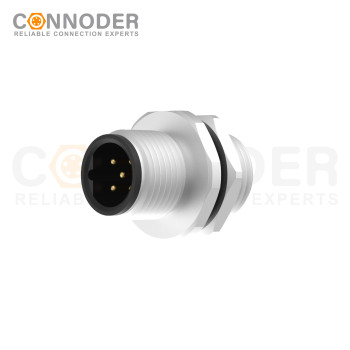

M12 B-coded Panel Circular Connector Plate Front-mounted Fastening Welded Ip67 Protection For Industry Grade Applications
- group name
- M12 B Coded Connector
- Min Order
- 1 piece
- brand name
- Connoder Circular Connector Manufacturer
- model
- MC12BM-05F2LSLNS101
- Nearest port for product export
- Shenzhen Guangdong, China
- Delivery clauses under the trade mode
- FOB, CIF, EXW, CIP, DDP, Express Delivery
- Acceptable payment methods
- T/T, L/C
- update time
- Sat, 10 May 2025 07:26:13 GMT
Paramtents
Type M12 Circular Connector
Contact Connection Type Male Connector
Number OF Positions 3 Pin（3/4/5Pin Optional）
Coding B
Termination Solder
Mounting Type Rear Fastened
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111
Packging & Delivery
-
Min Order1 piece
Briefing
The M12 B Circular Connector is an important connector type in industrial automation and is widely used in harsh environments that require compact, robust and reliable power, signal and data transmission.
Detailed
M12 B Circular Connector characteristic
Description
- M12 B Circular Connector usually have a protection rating of IP67 or even higher, are completely protected against dust ingress and can be immersed in water for short periods of time without damage. Shock and vibration resistant characteristics, reliability in the case of frequent vibration or subjected to physical shocks.
- The M12 B Circular Connector are specially designed for Profibus and other fieldbus systems, with a specific pin layout and coding mechanism to ensure the correct electrical connection and to avoid incorrect insertion of other types of plugs.The B-coding defines a 5-pole configuration, which is mainly used for Industrial Ethernet and related communication protocols, such as Profibus DP.
- The M12 B Circular Connector is known for its miniaturization, with an OD of only 12 mm, making it ideal for applications where space is limited. The M12 B Circular Connector offers a variety of mounting options including, but not limited to, panel mounting, PCB board mounting, and wave soldering. Simplifying the assembly process and reducing overall costs.
M12 B Circular Connector Specification
Shell Material | Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF | |
Sealing Material | Epoxy Resin/Rubber | |
Contact Material | Phosphor Copper Gold Plated/Brass Gold Plated | |
Insulator Material | PA+PA+GF/TPU | |
Molding Material | TPU/PVC | |
Contact Resistance | ≤5mΩ | |
Durability | ≥ 500 Cycles | |
Insulation Resistance | 100 MΩ | |
Applicable Temperature | -40℃ Tо +80℃ | |
Waterproof Grade | IP67/IP68 | |
M12 B Circular Connector Size diagram
M12 B Circular Connector Electrical parameter:
Product model | Pins | Rated current | Rated voltage | Wire Gauge/Size | |||
A/C | D/C | AWG | mm² | ||||
MC12BM-03F2LSLNS101 | 3 | 4A | 250V | 250V | 22 | 0.34 | |
MC12BM-04F2LSLNS101 | 4 | 4A | 250V | 250V | 22 | 0.34 | |
MC12BM-05F2LSLNS101 | 5 | 4A | 60V | 60V | 22 | 0.34 | |
M12 B Circular Connector Coding Parameter:
| Pins | 3B | 4B | 5B |
| Male |  |
 |
 |
| Pins | 3B | 4B | 5B |
| Female |  |
 |
 |
Note: If you need more parameter pictures or can not see clearly, please contact our customer service staff
M12 B Circular Connector Wire Definition:
| Pins | 3 Pin Core Color | Pins | 4 Pin Core Color | Pins | 5 Pin Core Color | ||||||
| 1 | BN |  |
1 | BN | |
1 | BN | |
|||
| 2 | - |  |
2 | WH |  |
2 | WH | |
|||
| 3 | BU |  |
3 | BU | |
3 | BU | |
|||
| 4 | BK | 4 | BK | 4 | BK |  |
|||||
| 5 | GY |  |
|||||||||
Remark: Wiring definition according to conventional standards. if according to the agreement or other please contact our sales.
M12 B Circular Connector Application:
Industrial Automation
Food Packaging
Warehousing Logistics
Automated Production
