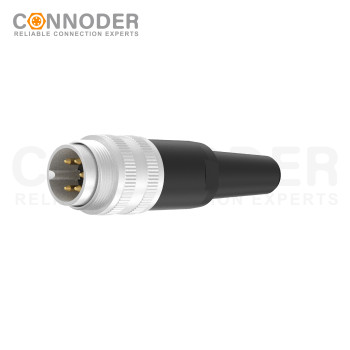

M16 Sensor connector waterproof IP65 Straight Metal Plastic Solder Assembly plug 2 3 4 5 6 7 8 12 14 16 19 24Pin with Plastic Tube

group name: M16 Circular Connector

Min Order: 1 piece

brand name: Connoder Circular Connector Manufacturer

model: MC16NM-05U4LSLNS402

Nearest port for product export: Shenzhen Guangdong, China

Delivery clauses under the trade mode: FOB, CIF, EXW, CIP, DDP, Express Delivery

Acceptable payment methods: T/T, L/C

update time: Sat, 10 May 2025 07:03:18 GMT

contact supplier

Paramtents

Type M16 Circular Connector
Contact Connection Type Male Connector
Number OF Positions 2/3/4/5/6/8/12/14/16/19/24 Pin
Coding General
Termination Solder
Mounting Type Plastic Metal Assembled
Shielded Option Shielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111

Packging & Delivery

Min Order1 piece

Briefing

M16 Sensor connector are ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems. M16 Sensor connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design.

Detailed

M16 Sensor connector characteristic

Description

M16 Sensor connector ideal for demanding industrial applications such as industrial automation and aerospace, marine, and telecom systems.
M16 Sensor connector are available in quick-lock wiring assembly types with IP67 protection and a vibration-resistant screw design
Connoder M16 Sensor connector series with rugged metal housing is the ideal solution to ensure uncompromised power and signal connections in harsh environments and industrial applications.
Connoder M16 Sensor connector are manufactured according to the AISG standard (AISG C 485), which offers 2 to 24 contacts with dip soldering, crimp, screw clamp, solder and stranded wire, and is also available with moulded cable. Some versions are shieldable, and users can expect more than 500 mating cycles.

M16 Sensor connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M16 Sensor connector Size diagram

M12 Straight Male Connectorr Size diagram

M16 Sensor connector Electrical parameter:

Product model	Pins	Rated current	Rated voltage		Wire Gauge/Size
Product model	Pins	Rated current	A/C	D/C	AWG	mm²
MC16NM-02U4LSLNS402	2	7A	250V	32V	20	0.75
MC16NM-03U4LSLNS402	3	7A	250V	32V	20	0.75
MC16NM-04U4LSLNS402	4	7A	250V	32V	20	0.75
MC16NM-05U4LSLNS402	5	7A	250V	32V	20	0.75
MC16NM-06U4LSLNS402	6	5A	250V	32V	20	0.75
MC16NM-07U4LSLNS402	7	5A	125V	32V	20	0.75
MC16NM-08U4LSLNS402	8	5A	60V	32V	20	0.75
MC16NM-12U4LSLNS402	12	3A	60V	32V	24	0.25
MC16NM-14U4LSLNS402	14	3A	60V	32V	24	0.25
MC16NM-16U4LSLNS402	16	3A	60V	32V	24	0.25
MC16NM-19U4LSLNS402	19	1A	60V	32V	24	0.25
MC16NM-24U4LSLNS402	24	1A	60V	32V	24	0.25
