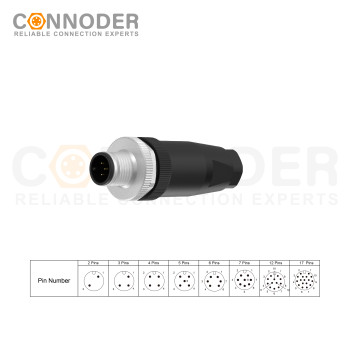

M12 A Circular Connector - 5 Pin Male Field Wireable, Screw Connection, A Code, PG7 | Partner with Us for OEM/ODM Solutions, Fast Delivery and Quality Assurance in Bulk Supply

group name: M12 A Coded Connector

Min Order: 1 piece

brand name: Connoder Circular Connector Manufacturer

model: MC12AM-05N1LJMNS601

Nearest port for product export: Shenzhen Guangdong, China

Delivery clauses under the trade mode: FOB, CIF, EXW, CIP, DDP, Express Delivery

Acceptable payment methods: T/T, L/C

update time: Fri, 05 Dec 2025 17:45:32 GMT

contact supplier

Paramtents

Type M12 Circular Connector
Contact Connection Type Male Connector
Number OF Positions 2 Pin（2/3/4/5/6/8 Pin Optional）
Coding A
Termination Screw
Mounting Type Straight Plastic Assembled
Shielded Option Unshielded
Approval UL
Pollution III
Flame Retardant IEC61076-2-111

Packging & Delivery

Min Order1 piece

Briefing

M12 A 5 Pin Circular Connector is a flexible and highly customizable connector suitable for a variety of industrial applications.

Detailed

M12 A Circular Connector characteristic

Description

M12 A Circular Connector offers a variety of polarity and coding options, including A-coding, B-coding, D-coding, and X-coding, to meet different connection requirements. For instance, A-coding is typically used for sensors, actuators, and power connections, B-coding for fieldbus connections, and D-coding and X-coding are often used for Ethernet and high-speed data transmission.
Pure copper gold-plated contacts with excellent electrical conductivity Fixed key position, multi-key position to prevent blindness, MIS insertion, skew insertion Strong waterproof performance, in line with IP67/IP68 waterproof requirements.
Thickened pins/long life Copper-zinc material, high resistance, wear resistance Threaded cable, easy to remove and plug, tightly combined, and not easy to fall off.
M12 A Circular Connector are available in a wide range of straight and Right angle, male and female, and plastic and metal versions.

Difference between PG7 and PG9

PG7 and PG9 are German standard thread sizes for cable fixing devices.PG7 is suitable for cable diameters from approx. 3.5mm to 6.5mm, while PG9 is suitable for cable diameters from approx. 4mm to 8mm. The choice depends on the cable diameter and equipment requirements.

M12 A Circular Connector Specification

Shell Material	Brass Nickel Plated/Zinc Alloy Nickel Plated/PA+GF
Sealing Material	Epoxy Resin/Rubber
Contact Material	Phosphor Copper Gold Plated/Brass Gold Plated
Insulator Material	PA+PA+GF/TPU
Molding Material	TPU/PVC
Contact Resistance	≤5mΩ
Durability	≥ 500 Cycles
Insulation Resistance	100 MΩ
Applicable Temperature	-40℃ Tо +80℃
Waterproof Grade	IP67/IP68

M12 A Circular Connector Size diagram

M12 A 5 Pin Circular Connector Size diagram

M12 A Circular Connector Electrical parameter:

Product model	Pins	Rated current	Rated voltage		Wire Gauge/Size
Product model	Pins	Rated current	A/C	D/C	AWG	mm²
MC12AM-02N1LJMNS601	2	4A	250V	250V	22	0.34
MC12AM-03N1LJMNS601	3	4A	250V	250V	22	0.34
MC12AM-04N1LJMNS601	4	4A	250V	250V	22	0.34
MC12AM-05N1LJMNS601	5	4A	60V	60V	22	0.34
MC12AM-06N1LJMNS601	6	2A	30V	30V	24	0.25
MC12AM-08N1LJMNS601	8	2A	30V	30V	24	0.25

M12 A Circular Connector Coding Parameter:

Pins	2A	3A	4A	5A
Male
	6A	8A	12A	17A

	4B	5B	3C	4C

	5C	6C	4D

Pins	2A	3A	4A	5A
Female
	6A	8A	12A	17A

	4B	5B	3C	4C

	5C	6C	4D
